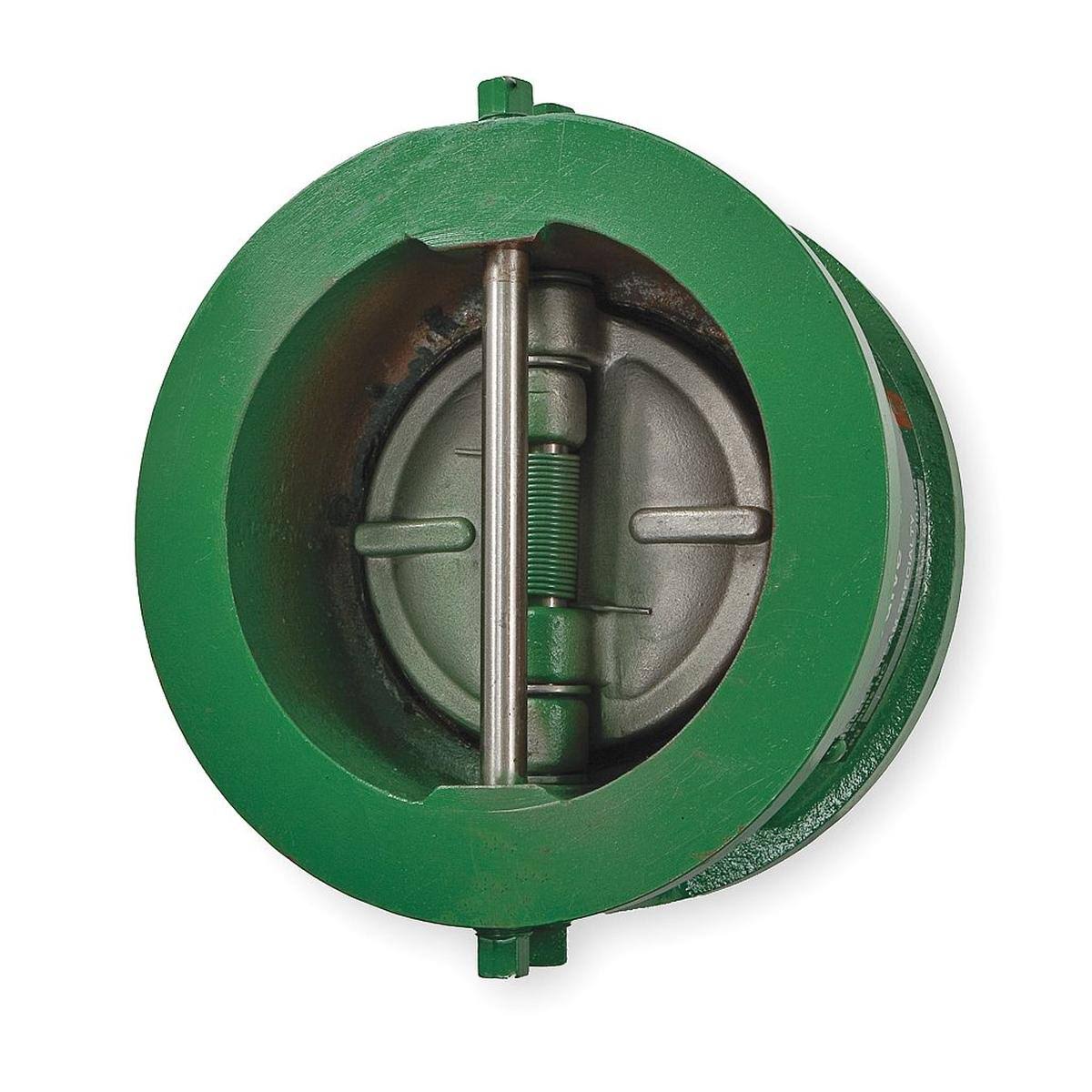

Cast Iron Wafer Double Disc Check Valve P448
  • Cast Iron Wafer Double Disc Check Valve P448
  • Cast Iron Wafer Double Disc Check Valve P448
Cast Iron Wafer Double Disc Check Valve P448

Cast Iron Wafer Double Disc Check Valve P448

$23.90 $111.99
Shipping calculated at checkout.
Sure Check Max. temp.: 100 F Class 125 valves prevent surge and water hammer due to flow reversal; specially designed springs close discs before flow reversal can occur. With stainless steel springs and Buna N seal. Mount vertically or horizontally. Designed to fit ANSI flanges. Suitable for liquid and gas service applications. Meet ANSI standards; FM Approved. Heavy-Duty Check Valves Max. pressure: 200 psi This listing is for each. Technical Specification Item - Check Valves Check Valve Flow Design Single Mechanism and Body Design Inline Wafer Body Material - Valves Cast Iron Pipe or Tube Size 6 in Connection Type Flanged Wafer x Flanged Wafer Mounting Orientation Horizontal, Vertical Seal Material Buna-N Max. Temp. - Valves 100 Degrees F Max. Water Pressure - Valves 200 psi @ 150 Degrees F Max. Steam Pressure - Valves Not Rated Seat Material Buna-N Spring Material 316 Stainless Steel Application - Valves Process Piping Length 8 3/4 in Width 3 in Overall Height 8 3/4 in Standards ANSI, API, FM, UL
